  • Aluminum Plate

›

Aluminum Plate
Tel: +86 183 5283 2632
E-mail: niki@wuxiperfectmetal.com
WhatsApp: +86 183 5283 2632
Inquire now
Contact us
Parameter
Chemical Composition
Mechanical Properties

ItemAluminum sheet
StandardEN 573,ASTM B209,JIS H4000-2006,etc
Material1050,1060,2A14,3003,3103,4032,5454,5754,5056,5082,5083,6061,6060,6063,6082,7075,7475
SizeThickness0.2-200mm
Width100-2000mm
Length2000mm,2440mm,6000mm,or as required.
Quality controlMill Test Certification is supplied with shipment,Third Part Inspection is acceptable.
SurfaceBright,polished,hair line,brush,sand blast,checkered,embossed,etching,etc
Trade conditions
Trade termsPrice termEx-Work,FOB,CNF,CFR,etc
Payment TermTT,L/C,western Union,etc
MOQ500Kg
Delivery time

1.The products in stock will delivery immediately received the payment.

2.According to the order quantity,prompt delivery.

PackageStandard export package,such as wooden box or as required.
Application

1)Further making utensil.

2)Solar reflective film

3)The appearance of the building

4)Interior decorating:ceilings,walls,etc.

5)Furniture cabinets

6)Elevator decoraction

7)Signs,nameplate,bags making.

8)Decorated inside and outside the car

9)Household appliances:refrigerators,microwave ovens,audio equipment,etc.

10)The consumer electronics:mobile phones,digital cameras,MP3,U disk,etc.

Container size

20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM

40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM

40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM



Alloy%Si%Mg%Mn%Cu%Fe%Cr%Zn%Ti%Others%Al
EN AW-1050 A0.25Max0.05Max0.05Max0.05Max0.40Max–0.07Max0.05Max–99.5 Min
EN AW-1070 A0.20Max0.03Max0.03Max0.03Max0.25Max–0.07Max0.03Max–99.7 Min
EN AW-1100Si+Fe 0.95 Max–0.05 Max0.05 – 0.20––0.10 Max0.05 Max–99.0 Min
EN AW-20110.40 Max––5.00 – 6.000.70 Max–0.30 Max–Bi : 0.20 – 0.60Pb : 0.20 – 0.60Remainder
EN AW-20140.50 – 1.200.20 – 0.800.40 – 1.203.90 – 5.000.70 Max0.10 Max0.25 Max0.15 Max–Remainder
EN AW-20240.50 Max1.20 -1.800.30 – 0.903.80 – 4.900.50 Max0.10 Max0.25 Max0.15 Max0.15 MaxRemainder
EN AW-30030.60 Max–1.00 – 1.500.05 – 0.200.70 Max–0.10 Max–0.15 MaxRemainder
EN AW-31030.50 Max0.30 Max0.90 – 1.500.10 Max0.70 Max0.10 Max0.20 Max0.10 Max–Remainder
EN AW-6101A0.30 – 0.70.40 – 0.900.03 Max0.05 Max0.40 Max–––0.10 MaxRemainder
EN AW-60050.60 – 0.900.40 – 0.600.10 Max0.10 Max0.35 Max0.10 Max0.10 Max0.10 Max–Remainder
EN AW-63510.70 – 1.300.40 – 0.800.40 – 0.800.10 Max0.50 Max–0.20 Max0.20 Max0.15 MaxRemainder
EN AW-60600.30 – 0.600.35 – 0.600.10 Max0.10 Max0.10 – 0.300.05 Max0.15 Max0.10 Max–Remainder
EN AW-60610.40 – 0.800.80 – 1.200.15 Max0.15 – 0.400.70 Max0.04 – 0.350.25 Max0.15 Max–Remainder
EN AW-60630.20 – 0.600.45 – 0.900.10 Max0.10 Max0.35 Max0.10 Max0.10 Max0.10 Max–Remainder
EN AW-60820.70 – 1.300.60 -1.200.40 – 1.000.10 Max0.50 Max0.25 Max0.20 Max0.10 Max–Remainder



AlloyTemperUTS (Mpa)Yield Strength (Mpa)Elongation (%)

MinimumMaximumMinimumMaximumA 50mm (Minimum)
EN AW-1050 AF60–20–23
O609520–23
EN AW-1070 AF60–20–23
EN AW-1100O75110––25
EN AW-2011T4275–125–12
T6310–230–6
EN AW-2014O–250–13510
T4370–230–11
T6415–370–5
EN AW-2024O–250–15010
T3,T3510,T3511395–290–6
T8,T8510,T8511455–380–4
EN AW-3003F95–35–20
O9513535–20
EN AW-3103F95–35–20
O9513535–20
EN AW-6101AT6200–170–8
EN AW-6005T4180–90–13
T6270–225–6
EN AW-6351O–160–11012
T4205–110–12
T6290–250–6
EN AW-6060T4120–601412
T5160–120–6
T6190–150–6
T64180–120–10
T66215–160–6
EN AW-6061O–150–11014
T4180–110–13
T6260–240–6
EN AW-6063O–130––16
T4130–65–12
T5175–130–6
T6215–170–6
T66245–200–6
EN AW-6082O–160–11012
T4205–110–12
T5270–230–6
T6290–250–6
PACKING AND TRANSPORTATION

包装

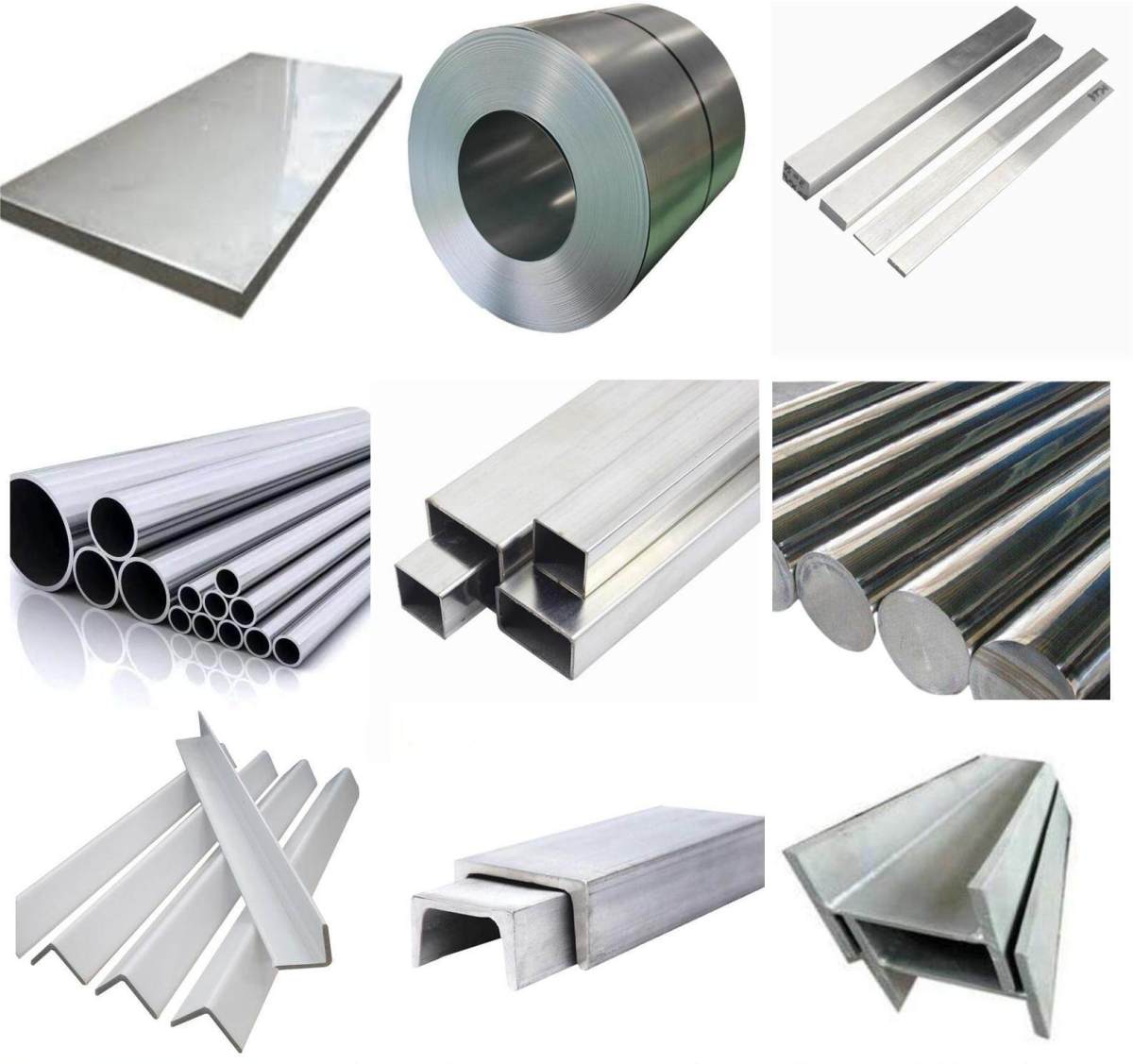

PRODUCT

微信图片_20260112142843_666_158

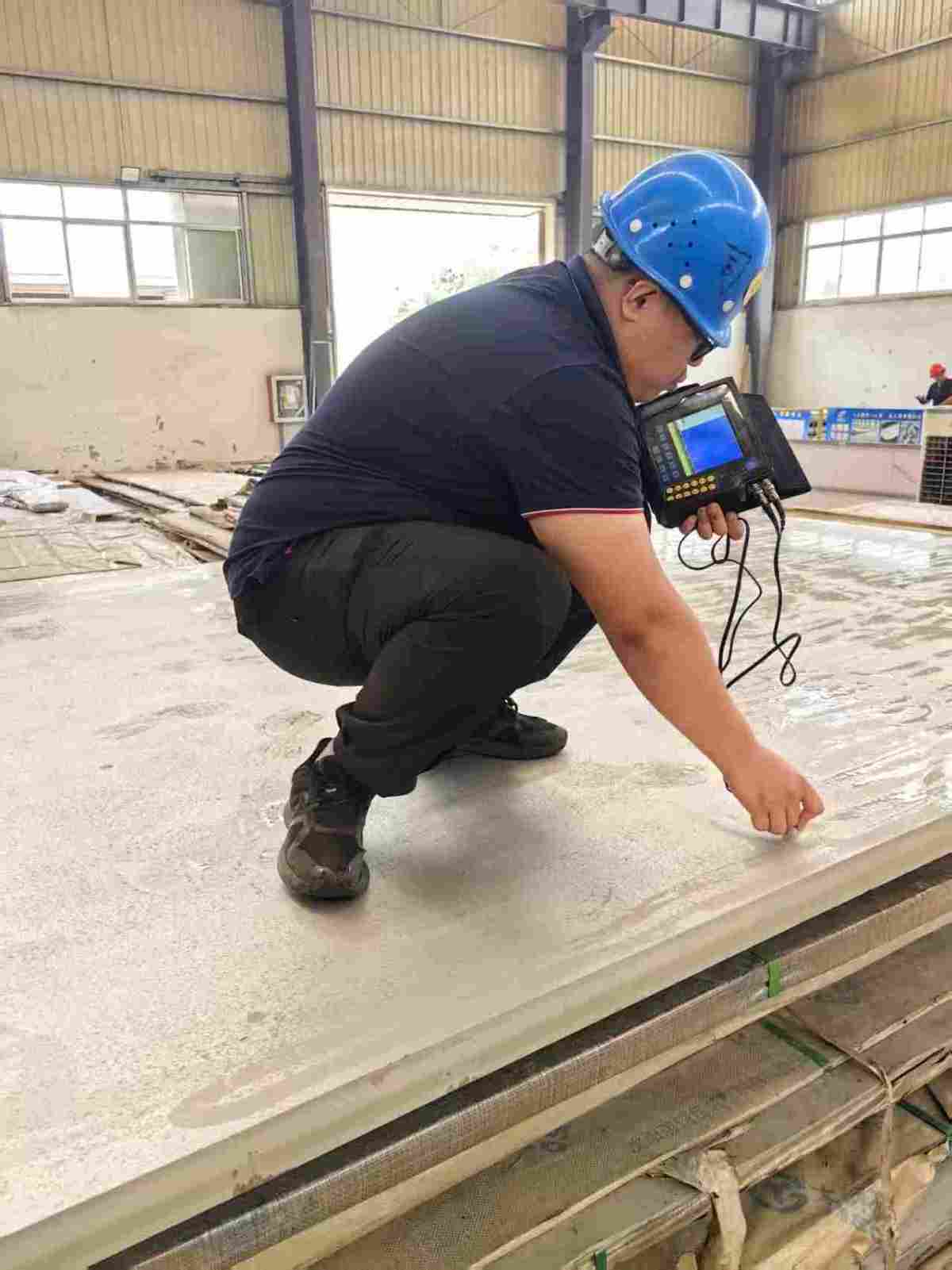

TEST

微信图片_20251121101304_5082_30(1)

CERTIFICATE

rz5(1)
