  • Brass Bar

›

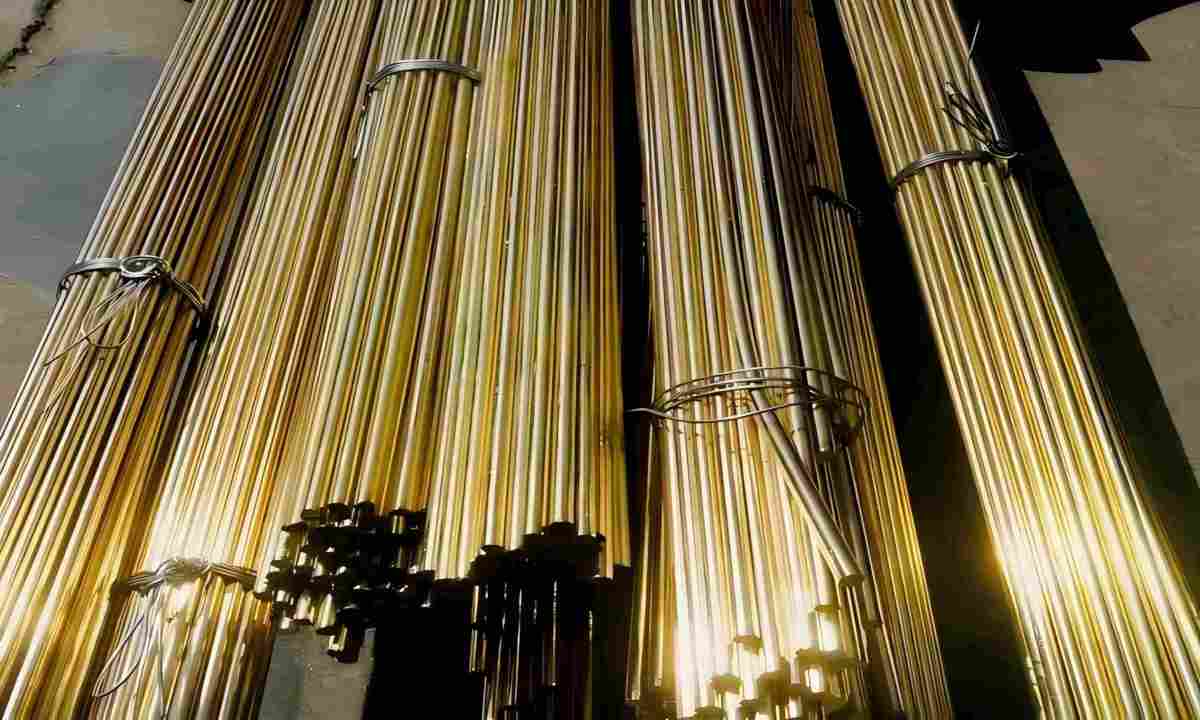

Brass Bar
Tel: +86 183 5283 2632
E-mail: niki@wuxiperfectmetal.com
WhatsApp: +86 183 5283 2632
Inquire now
Contact us
Parameter
Chemical Composition
Mechanical Properties
ItemBrass bar,brass rod
StandardASTMB152,B187,B133,B301,B196,B441,B465,JISH3250-2006,EN12163-98,etc
GradeC10200,C12000,C22000,C21000,C23000,C51900,C6191,C63200,C76400,C95300,C95500,C95800, etc.
Size3mm~800mm;5.8m,6m,or as required
PackageStandard export seaworthy package,suit for all kinds of transport,or as required.
ContainerSize

20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)

40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)

40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)

Price termEx-Work,FOB,CNF,CFR,CIF,etc
Application

Brass bar is widely used in boat building,War industry, Car industry and communicationindustry

where the components need good wear proof and great corrosion resistance

ContactIf you have any question,please feel free to contact me .


GradeMain componentsImpurity components %total impurities %

CuPbZnFeNi
HPb59-157-600.8-1.9margin≤0.5≤1.0≤1.0
HPb59-257.5-59.52.0-2.8margin≤0.5--≤1.2
HPb59-357.5-59.52.0-3.0margin≤0.5≤0.5≤1.2
HPb60-258-611.5-2.5margin≤0.3--
HPb62-260-631.5-2.5margin≤0.15--
HPb62-360-632.5-3.7margin≤0.35--
HPb63-362-652.4-3.0margin≤0.1≤0.5≤0.75

Main components %Impurity components%

CuZnPb
FeNi
H5957-60margin≤0.5≤0.3≤0.5≤1.0
HP6257-60margin≤0.08≤0.15≤0.5≤0.5
H6563.5-68margin≤0.03≤0.1≤0.5≤0.3
H6867-70margin≤0.03≤0.1≤0.5≤0.3
H7068.5-71.5margin≤0.03≤0.1≤0.5≤0.3
H8079-81margin≤0.03≤0.1≤0.5≤0.3
H8584-86margin≤0.03≤0.1≤0.5≤0.3
H9088-91margin≤0.03≤0.1≤0.5≤0.2
H9695-97margin≤0.03≤0.1≤0.5≤0.2
Grade (JIS)TemperVickers Hardness (HV)Tensile Strength (Mpa)Elongation (%)
C1100,C1201,C1220,etc.M (Soft)≤70≥195≥30
Y4 (1/4H)60-95215-295≥25
Y2 (1/2H)80-110245-345≥8
C95800
O≥160≥585≥15
C63200TQ50
190-210≥620≥15
PACKING AND TRANSPORTATION

包装PRODUCT
